光電直讀水表
- 產品特點
- 采用光電透射式直讀技術，直接讀取字輪數據，無累計差;

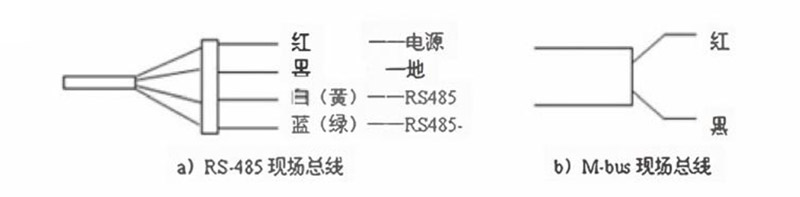

- RS-485 或M-bus總線制通訊技術，能夠同時給水表供電和傳輸數據;
- 總線供電，無電池壽命的擔憂;
- MCU內置EEPROM,數據安全，不用擔心因掉電丟失數據;
- 抄表時短時間工作，電子單元壽命長。
Adopting photoelectric transmission direct reading technology, directly reading wheel data without cumulative error;
RS-485 or M-bus communication technology, capable of simultaneously supplying power to water meters and transmitting data;
Bus powered, no concerns about battery life;
MCU has built-in EEPROM for data security, so there is no need to worry about data loss due to power failure;
Short working hours during meter reading and long lifespan of electronic units.
|
產品參數（中文） Product parameters（English） |
參數值（中文） Parameter values（English） |
|---|---|
|
通訊協議
Communication protocol |
CJ/T188 DL/T645
自定義（Customization) |
|
工作環境
Work environment |
-10°C~55°C,<100%RH |
|
氣候和機械環境條件等級 Climate and mechanical environmental
condition levels |
B |
|
電磁兼容性等級
Electromagnetic compatibility level |
E1 |
|
通信方式 Communication mode |
RS-485 M-bus |
|
壓力損失
pressure loss |
≤0.063Mpa |
|
防護等級
Protection level |
IP68 |
|
靜態電流
Static current
|
≤3UA |
|
工作電壓
Working voltage |
DC12V DC24-42V |
|
通訊速率
Communication rate |
2400bps,9600bps,自定義 |
|
電子讀數
Electronic reading |
4位直讀:0~9999;6位直讀0.0-99999.9 |
